I’ve been using Emacs for over 20 years. I’ve always used M-x compile and next-error without thinking much about them – you run a build, you jump to errors, life is good. But recently, while working on neocaml (a Tree-sitter-based OCaml major mode), I had to write a custom compilation error regexp and learned that compile.el is far more sophisticated and extensible than I ever appreciated.

This post is a deep dive into compilation mode – how it works, how to customize it, and how to build on top of it.

The Basics

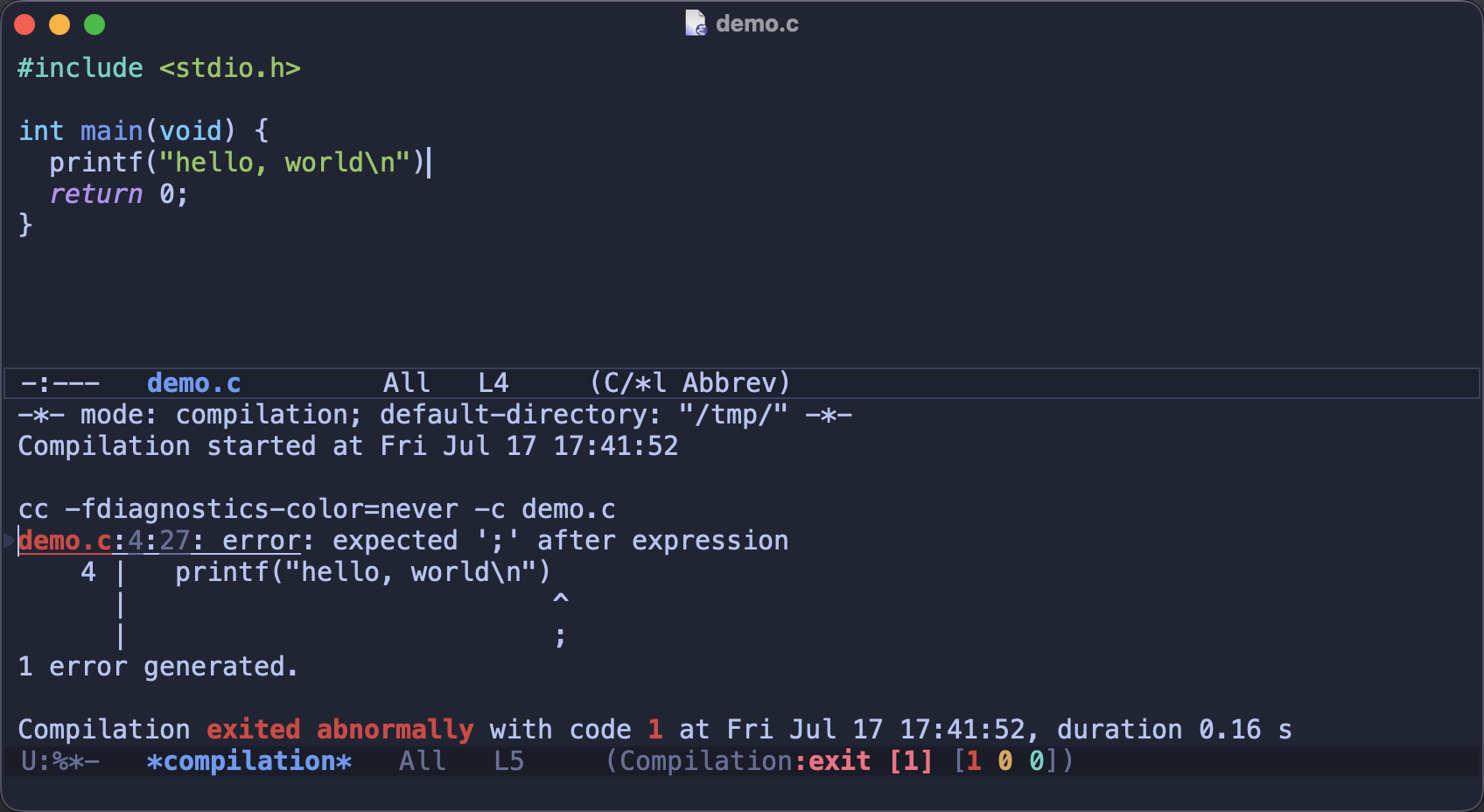

If you’re not already using M-x compile, start today. It runs a shell command, captures the output in a *compilation* buffer, and parses error messages so you can jump directly to the offending source locations.

The essential keybindings in a compilation buffer:

Keybinding Command What it does
g recompile Re-run the last compilation command
M-n compilation-next-error Move to the next error message
M-p compilation-previous-error Move to the previous error message
RET compile-goto-error Jump to the source location of the error at point
C-c C-f next-error-follow-minor-mode Auto-display source as you move through errors

But the real power move is using next-error and previous-error (M-g n and M-g p) from any buffer. You don’t need to be in the compilation buffer – Emacs tracks the last buffer that produced errors and jumps you there. This works across compile, grep, occur, and any other mode that produces error-like output.

Pro tip: M-g M-n and M-g M-p do the same thing as M-g n / M-g p but are easier to type since you can hold Meta throughout.

How Error Parsing Actually Works

Here’s the part that surprised me. Compilation mode doesn’t have a single regexp that it tries to match against output. Instead, it has a list of regexp entries, and it tries all of them against every line. The list lives in two variables:

  • compilation-error-regexp-alist – a list of symbols naming active entries
  • compilation-error-regexp-alist-alist – an alist mapping those symbols to their actual regexp definitions

Emacs ships with dozens of entries out of the box – for GCC, Java, Ruby, Python, Perl, Gradle, Maven, and many more. You can see all of them with:

(mapcar #'car compilation-error-regexp-alist-alist)

Each entry in the alist has this shape:

(SYMBOL REGEXP FILE LINE COLUMN TYPE HYPERLINK HIGHLIGHT...)

Where:

  • REGEXP – the regular expression to match
  • FILE – group number (or function) for the filename
  • LINE – group number (or cons of start/end groups) for the line
  • COLUMN – group number (or cons of start/end groups) for the column
  • TYPE – severity: 2 = error, 1 = warning, 0 = info (can also be a cons for conditional severity)
  • HYPERLINK – group number for the clickable portion
  • HIGHLIGHT – additional faces to apply

The TYPE field is particularly interesting. It can be a cons cell (WARNING-GROUP . INFO-GROUP), meaning “if group N matched, it’s a warning; if group M matched, it’s info; otherwise it’s an error.” This is how a single regexp can handle errors, warnings, and informational messages.

A Real-World Example: OCaml Errors

Let me show you what I built for neocaml. OCaml compiler output looks like this:

File "foo.ml", line 10, characters 5-12:
10 |   let x = bad_value
              ^^^^^^^
Error: Unbound value bad_value

Warnings:

File "foo.ml", line 3, characters 6-7:
3 | let _ x = ()
          ^
Warning 27 [unused-var-strict]: unused variable x.

And ancillary locations (indented 7 spaces):

File "foo.ml", line 5, characters 0-20:
5 | let f (x : int) = x
    ^^^^^^^^^^^^^^^^^^^^
       File "foo.ml", line 10, characters 6-7:
10 |   f "hello"
          ^
Error: This expression has type string but ...

One regexp needs to handle all of this. Here’s the (slightly simplified) entry:

(push `(ocaml
        ,neocaml--compilation-error-regexp
        3                                    ; FILE = group 3
        (4 . 5)                              ; LINE = groups 4-5
        (6 . neocaml--compilation-end-column) ; COLUMN = group 6, end via function
        (8 . 9)                              ; TYPE = warning if group 8, info if group 9
        1                                    ; HYPERLINK = group 1
        (8 font-lock-function-name-face))    ; HIGHLIGHT group 8
      compilation-error-regexp-alist-alist)

A few things worth noting:

  • The COLUMN end position uses a function instead of a group number. OCaml’s end column is exclusive, but Emacs expects inclusive, so neocaml--compilation-end-column subtracts 1.
  • The TYPE cons (8 . 9) means: if group 8 matched (Warning/Alert text), it’s a warning; if group 9 matched (7-space indent), it’s info; otherwise it’s an error. Three severity levels from one regexp.
  • The entry is registered globally in compilation-error-regexp-alist-alist because *compilation* buffers aren’t in any language-specific mode. Every active entry is tried against every line.

Adding Your Own Error Regexp

You don’t need to be writing a major mode to add your own entry. Say you’re working with a custom linter that outputs:

[ERROR] src/app.js:42:10 - Unused import 'foo'
[WARN] src/app.js:15:3 - Missing return type

You can teach compilation mode about it:

(with-eval-after-load 'compile
  (push '(my-linter
          "^\\[\\(ERROR\\|WARN\\)\\] \\([^:]+\\):\\([0-9]+\\):\\([0-9]+\\)"
          2 3 4 (1 . nil))
        compilation-error-regexp-alist-alist)
  (push 'my-linter compilation-error-regexp-alist))

The TYPE field (1 . nil) means: “if group 1 matches, it’s a warning” – but wait, group 1 always matches. The trick is that compilation mode checks the content of the match. Actually, let me correct myself. The TYPE field should be a number or expression. A cleaner approach:

(with-eval-after-load 'compile
  (push '(my-linter
          "^\\[\\(?:ERROR\\|\\(WARN\\)\\)\\] \\([^:]+\\):\\([0-9]+\\):\\([0-9]+\\)"
          2 3 4 (1))
        compilation-error-regexp-alist-alist)
  (push 'my-linter compilation-error-regexp-alist))

Here group 1 only matches for WARN lines (it’s inside a non-capturing group with an alternative). TYPE is (1) meaning “if group 1 matched, it’s a warning; otherwise it’s an error.”

Now M-x compile with your linter command will highlight errors and warnings differently, and next-error will jump right to them.

Useful Variables You Might Not Know

A few compilation variables that are worth knowing:

;; OCaml (and some other languages) use 0-indexed columns
(setq-local compilation-first-column 0)

;; Scroll the compilation buffer to follow output
(setq compilation-scroll-output t)

;; ... or scroll until the first error appears
(setq compilation-scroll-output 'first-error)

;; Skip warnings and info when navigating with next-error
(setq compilation-skip-threshold 2)

;; Auto-close the compilation window on success
(setq compilation-finish-functions
      (list (lambda (buf status)
              (when (string-match-p "finished" status)
                (run-at-time 1 nil #'delete-windows-on buf)))))

The compilation-skip-threshold is particularly useful. Set it to 2 and next-error will only stop at actual errors, skipping warnings and info messages. Set it to 1 to also stop at warnings but skip info. Set it to 0 to stop at everything.

The Compilation Mode Family

Compilation mode isn’t just for compilers. Several built-in modes derive from it:

  • grep-mode – M-x grep, M-x rgrep, M-x lgrep all produce output in a compilation-derived buffer. Same next-error navigation, same keybindings.
  • occur-mode – M-x occur isn’t technically derived from compilation mode, but it participates in the same next-error infrastructure.
  • flymake/flycheck – uses compilation-style error navigation under the hood.

The grep family deserves special mention. M-x rgrep is recursive grep with file-type filtering, and it’s surprisingly powerful for a built-in tool. The results buffer supports all the same navigation, plus M-x wgrep (from the wgrep package) lets you edit grep results and write the changes back to the original files. That’s a workflow that rivals any modern IDE.

Building a Derived Mode

The real fun begins when you create your own compilation-derived mode. Let’s build one for running RuboCop (a Ruby linter and formatter). RuboCop’s emacs output format looks like this:

app/models/user.rb:10:5: C: Style/StringLiterals: Prefer single-quoted strings
app/models/user.rb:25:3: W: Lint/UselessAssignment: Useless assignment to variable - x
app/models/user.rb:42:1: E: Naming/MethodName: Use snake_case for method names

The format is FILE:LINE:COLUMN: SEVERITY: CopName: Message where severity is C (convention), W (warning), E (error), or F (fatal).

Here’s a complete derived mode:

(require 'compile)

(defvar rubocop-error-regexp-alist
  `((rubocop-offense
     ;; file:line:col: S: Cop/Name: message
     "^\\([^:]+\\):\\([0-9]+\\):\\([0-9]+\\): \\(\\([EWFC]\\)\\): "
     1 2 3 (5 . nil)
     nil (4 compilation-warning-face)))
  "Error regexp alist for RuboCop output.
Group 5 captures the severity letter: E/F = error, W/C = warning.")

(define-compilation-mode rubocop-mode "RuboCop"
  "Major mode for RuboCop output."
  (setq-local compilation-error-regexp-alist
              (mapcar #'car rubocop-error-regexp-alist))
  (setq-local compilation-error-regexp-alist-alist
              rubocop-error-regexp-alist))

(defun rubocop-run (&optional directory)
  "Run RuboCop on DIRECTORY (defaults to project root)."
  (interactive)
  (let ((default-directory (or directory (project-root (project-current t)))))
    (compilation-start "rubocop --format emacs" #'rubocop-mode)))

A few things to note:

  • define-compilation-mode creates a major mode derived from compilation-mode. It inherits all the navigation, font-locking, and next-error integration for free.
  • We set compilation-error-regexp-alist and compilation-error-regexp-alist-alist as buffer-local. This means our mode only uses its own regexps, not the global ones. No interference with other tools.
  • compilation-start is the workhorse – it runs the command and displays output in a buffer using our mode.
  • The TYPE field (5 . nil) means: if group 5 matched, check its content – but actually, here all lines match group 5. The subtlety is that compilation mode treats a non-nil TYPE group as a warning. To distinguish E/F from W/C, you’d need a predicate or two separate regexp entries. For simplicity, this version treats everything as an error, which is usually fine for a linter.

You could extend this with auto-fix support (rubocop -A), or a sentinel function that sends a notification when the run finishes:

(defun rubocop-run (&optional directory)
  "Run RuboCop on DIRECTORY (defaults to project root)."
  (interactive)
  (let ((default-directory (or directory (project-root (project-current t))))
        (compilation-finish-functions
         (cons (lambda (_buf status)
                 (message "RuboCop %s" (string-trim status)))
               compilation-finish-functions)))
    (compilation-start "rubocop --format emacs" #'rubocop-mode)))

Side note: RuboCop actually ships with a built-in emacs output formatter (that’s what --format emacs uses above), so its output already matches Emacs’s default compilation regexps out of the box – no custom mode needed. I used it here purely to illustrate how define-compilation-mode works. In practice you’d just M-x compile RET rubocop --format emacs and everything would Just Work.1

next-error is not really an error

There is no spoon.

– The Matrix

The most powerful insight about compilation mode is that it’s not really about compilation. It’s about structured output with source locations. Any tool that produces file/line references can plug into this infrastructure, and once it does, you get next-error navigation for free. The name compilation-mode is a bit of a misnomer – something like structured-output-mode would be more accurate. But then again, naming is hard, and this one has 30+ years of momentum behind it.

This is one of Emacs’s great architectural wins. Whether you’re navigating compiler errors, grep results, test failures, or linter output, the workflow is the same: M-g n to jump to the next problem. Once your fingers learn that pattern, it works everywhere.

I used M-x compile for two decades before I really understood the machinery underneath. Sometimes the tools you use every day are the ones most worth revisiting.

That’s all I have for you today. In Emacs we trust!

  1. Full disclosure: I may know a thing or two about RuboCop’s Emacs formatter. ↩
